Poly bag making machine
Machine Features
Poly bag making machine
Polystar Model Name: VB
Features: Vent bag making machine manufacturers is suitable for making bottom sealing bags and T-shirt bags
1. Servo motor for controlling bag length is equipped on Vent bag making machine manufacturers. Servo motor brand is Yaskawa, Japan.
Single line operation: With 1 set of mark sensor and 1 set of servo motor system
Two lines operation: With 2 sets of mark sensor and 2 sets of servo motor system
2. Vent bag making machine manufacturers is equipped with auto-lift reel device for jumbo roll feeding (with pneumatic cylinder)
3. Cutting of Vent bag making machine manufacturers: Heat sealing/Cutting design
4. The cutting blades of Vent bag making machine manufacturers are all SKH3 material.
5. Vent bag making machine manufacturers can produce bottom sealing bag or T-shirt bag by changing the sealing bar.
6. The photocell (SICK) for accurate registration of film printing points is installed on Vent bag making machine manufacturers.
7. The in-line automatic punching system of Vent bag making machine manufacturers is with pneumatic & hydraulic cylinders to punch out the handles of T-shirt bags smoothly.
8. Vent bag making machine manufacturers will automatically stop when the film roll is empty.
Possible Product
Poly bag making machine
Vent bag making machine manufacturers is available for making--
1. T-shirt bag
2. Printed and unprinted T-shirt bag
3. Bottom sealing flat bag

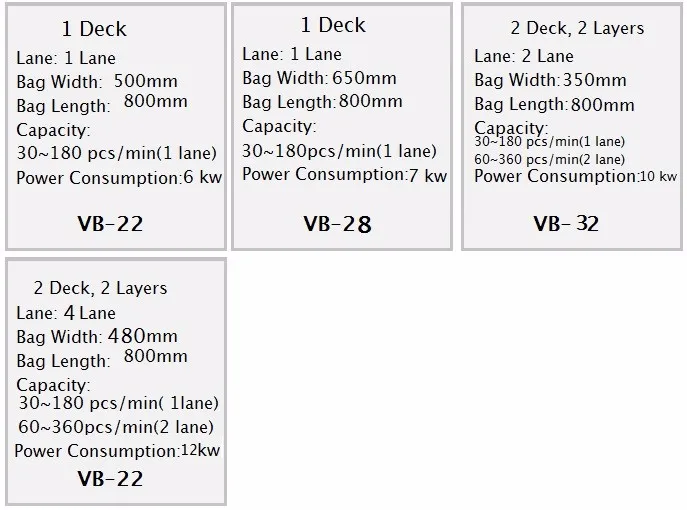

Select Your Model
Poly bag making machine

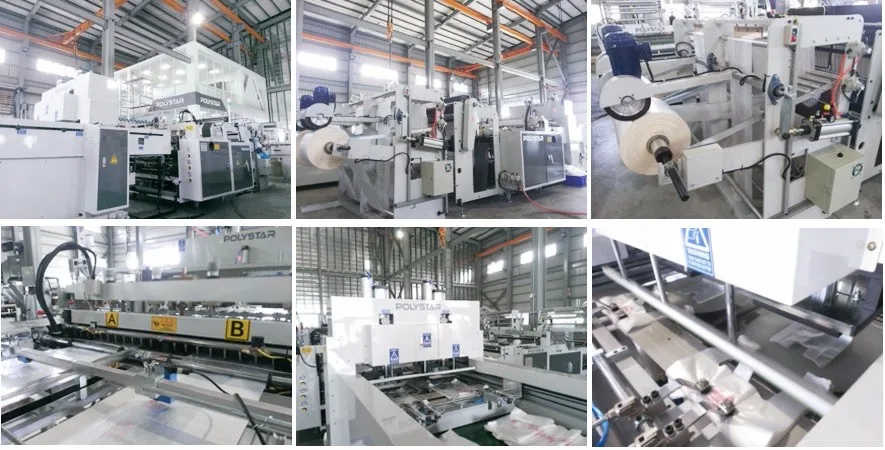

Polystar's facility in Taiwan

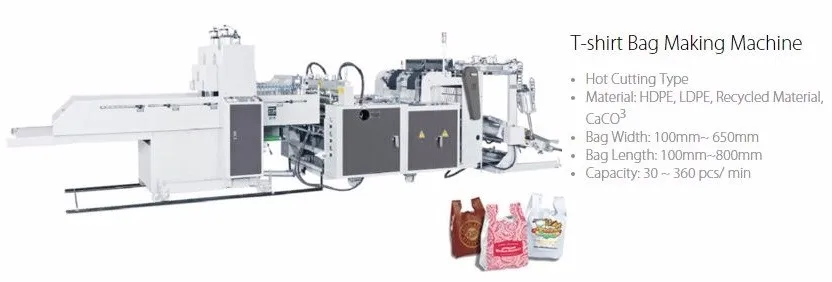

The T-shirt bag making machine is suitable for producing HDPE/LDPE T-shirt bag with and without printing. The machine is equipped with a photocell on each line, which helps to make sure of the printing area on the film. The machine can cut the bags at same length.
The hot sealing/cutting knife makes the bottom welding of the bag stronger than other kind of bottom sealing machines. Since the raw material cost keeps increasing, many film producers are producing films from recycled material or CaCO3 blended material, which is more difficult to be heated/sealed. Polystar specially designs the hot sealing/cutting knife for the user who has films made from recycled material and CaCO3 blended material. The bottom of the bags can be well welded by this hot cutting system.
The punching mould shape can be made upon customer's request. Any T-shirt bag with the width of 10cm to 65cm can be made by Polystar's T-shirt bag making machine. Bag with gusset or without gusset on both side can be both be processed by this T-shirt bag making machine.
Trade show
Poly bag making machine
Why POLYSTAR
Poly bag making machine
Poly bag making machine from Taiwan
Find more info on Poly bag making machine : www.polystarco.com
