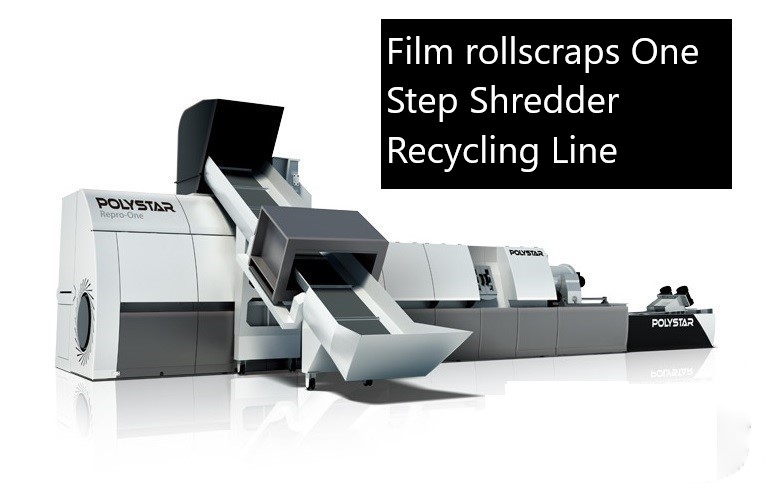

Film roll/scraps One Step Shredder Recycling Line

Repro-One

Film roll/scraps One Step Shredder Recycling Line

One step technology for PP raffia, woven and PE/PP film waste

- High percent of recycled pellets back into your tape and film extrusion lines- One-Step, simple process
- Large-sized, hard-to-crushed waste

- Material of different shapes and sizes

- No need to pre-crushed

Model Comparision
Film roll/scraps One Step Shredder Recycling Line

Model	*Output range (kg/hr)	Power consumption	Dimension
Model	*Output range (kg/hr)	Power consumption	A(Length)	B(Height)	C(Width)
Repro-One 65	80-110	55 kw	5800	4100	11300
Repro-One 85	150-250	95 kw	5900	4100	12000
Repro-One 100	250-350	138 kw	6000	4100	12700
Repro-One 120	350-500	153 kw	6100	4100	13400
* The machine layout (picture) is for reference only. The actual layout changes depending on the optional devices (metal detector, centrifugal dryer, nip roll feeder, venting option, filter option and machine cover option) that the customer chooses. * Output based on clean, dry LDPE film processing without degassing.

Recycling Material
Film roll/scraps One Step Shredder Recycling Line

Film roll/scraps	Raffia	Jumbo Bag	Woven Sack	Bottles / Hard Plastic

PP ropes	Plastic lumps	PP non woven bag	PP woven bag	Bulks
Film roll/scraps One Step Shredder Recycling Line is ideal for PP raffia/PP non-woven manufacturer who process their rejected raffia waste (tapes, fabric, jumbo big bags, lumps) generated from in-house production.

Product Description
Film roll/scraps One Step Shredder Recycling Line
One-step process with lowest material degradation The one step Film roll/scraps One Step Shredder Recycling Line Repro-One has an integration of a heavy duty single-shaft shredder that is directly connected with the extruder pelletizer.

	Ideal for both raffia and film waste The recycling machine is ideal for PP raffia/PP non-woven manufacturer who process their rejected raffia waste (tapes, fabric, jumbo big bags, lumps) generated from in-house production. The recycled pellets can be put directly back into tape extrusion lines for immediate reprocessing. These recycled pellets can be loaded in high percentages and still produce excellent fabric with good tensile strength and elongation.
Directly processes, uniform feeding This eliminates the need of pre-cutting/pre-shredding large-sized, thick or bulky waste (including hard plastics), feeding the waste directly from the shredder into the extruder at a very fast and constant rate without over-heating the material. This technology ensures continuous and uniform feeding to the extruder that produces high quality recycled pellets.
	Simple operation, high performance recycling machine The precisely controlled ram inside the shredder continuously pushes the bulky material towards the rotating shredder. After shredding, the material is fed directly into the extruder. The material then goes through degassing (if the material is printed) and filtered before the die face pelletizing process. The Film roll/scraps One Step Shredder Recycling Line can effectively process large-sized waste such as jumbo bags, raffia, tape, woven and nonwoven without pre-shredding in advance.

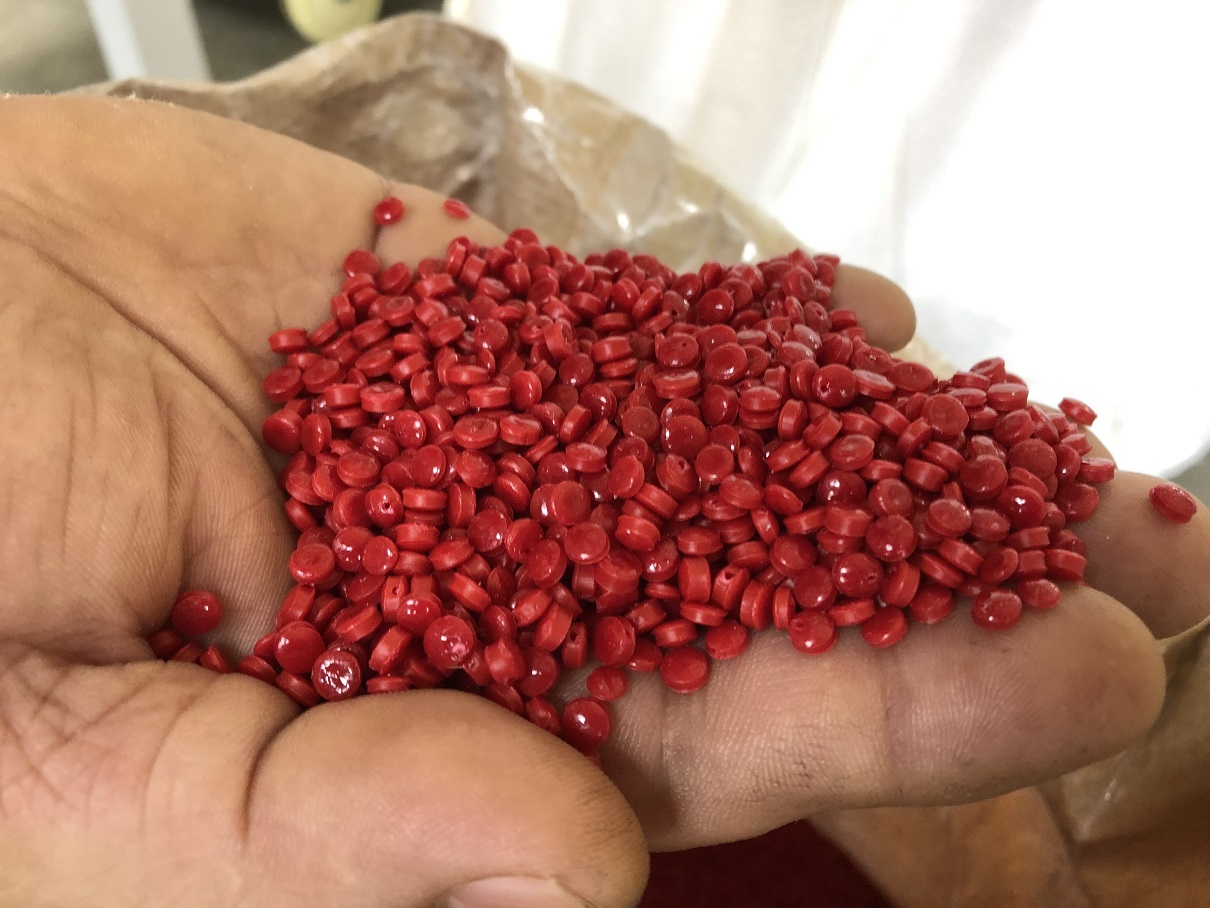

100% reusable recycled pellets The flexibility of the Repro-One Film roll/scraps One Step Shredder Recycling Line allows raffia and film producers to reprocess their in-house production waste easily in a single machine. The high quality pellets with minimal material degradation can be reused 100% in reprocessing which generates great secondary values for the producers.

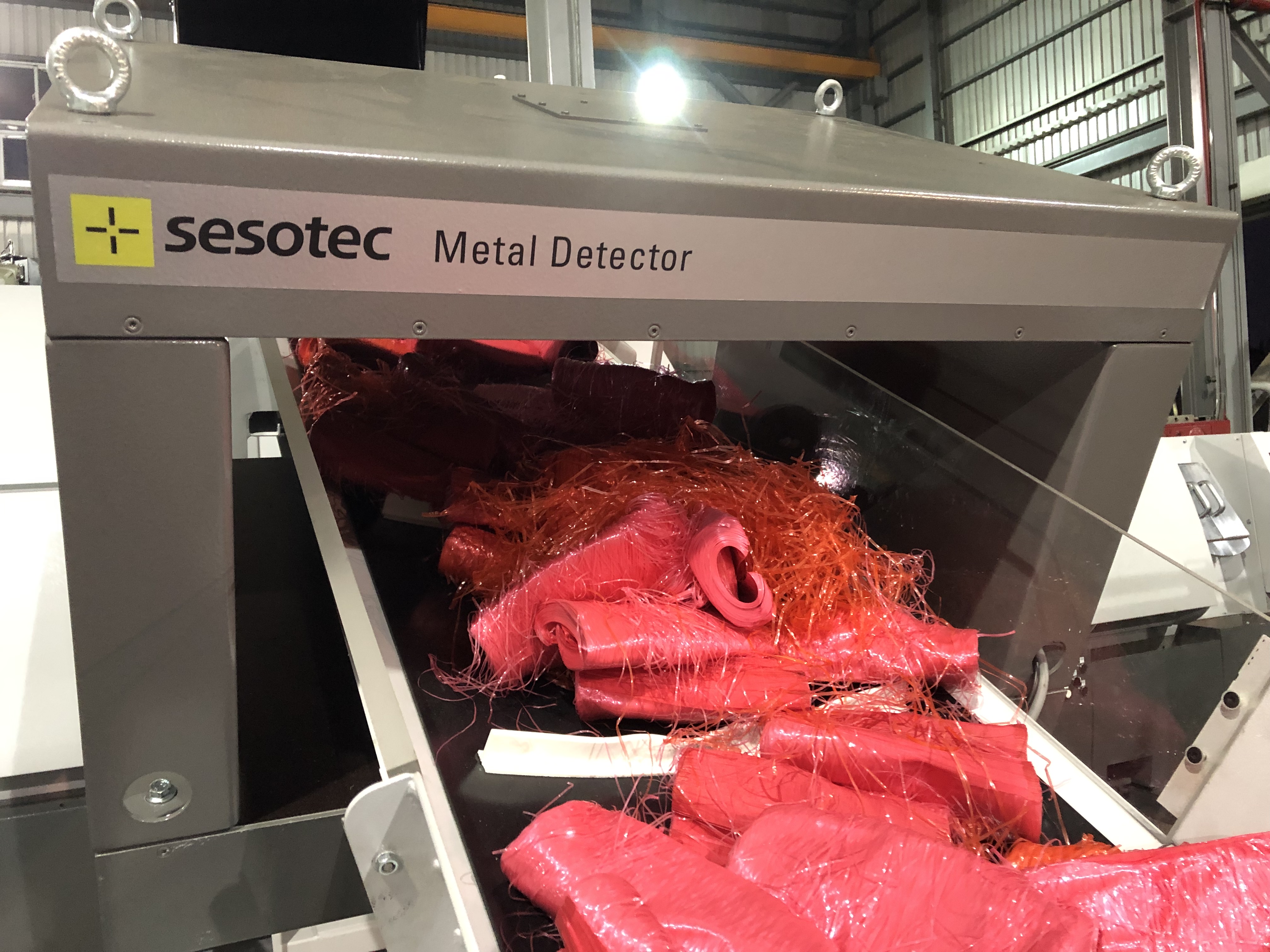

Customers' photo
Film roll/scraps One Step Shredder Recycling Line in customs' plant

Recycle in an easy way - Work with POLYSTAR! - Simple solutions for processing film, raffia, injection, foam and washed film waste - Small to big production output range available depending on your requirement - Simple machine operation and maintenance - Easy spare parts replacement - Highest quality of in-house recycling, achieved in an easy way - Flexible machine design to meet your requirement and factory layout

Worldwide presence

World-class Producer of Plastic Recycling Machine

- More than 4,180 machines have been installed since 1988
- Satisfied customers in 105 countries in Asia, Africa, Europe, Middle East & America
- Cooperates with small, medium-sized companies to industrial leaders
- 170 Recycling machines have been sold to date since K show (Germany) in 2016
- More than 300% growth in revenue since 2013

Recycle in an easy way - Work with POLYSTAR!

High quality recycled pellets	Manufacturing with Precision	Service and Communication
Up to 100% reusability back into your production line. Post-industrial waste generated from production of film, raffia and injection regrind can be recycled efficiently by Film roll/scraps One Step Shredder Recycling Line and put right back into your production lines. Meaning less amount of new (raw) material needs to be used in your production.	- CE certified Film roll/scraps One Step Shredder Recycling Line with total quality control - Adopts the latest design and manufacturing of screw and barrel to achieve maximum efficiency - Strong research and design team	- Overseas Film roll/scraps One Step Shredder Recycling Line installation service and training are available - Machine warranty with in-time spare parts delivery - Fast online trouble shooting

POLYSTAR Exhibition with
Film roll/scraps One Step Shredder Recycling Line

Shipment
Film roll/scraps One Step Shredder Recycling Line

Contact POLYSTAR
	Film roll/scraps One Step Shredder Recycling Line Official Website:https://www.polystarco.com/tw/products_i_Single_shaft _shredder.html Youtube Channel: https://www.youtube.com/user/Polystarco Email: polystar.sales@gmail.com Contact Number: +886 6 273 0889 Address: No.198, Ansin 2nd Rd., Annan Dist. Sinji Industrial Park. Tainan City 709, Taiwan
