| Direct Feeding Pelletizing Technology |
| - Single step process: Extrusion + Degassing + Filtration + Pelletizing - Less processing steps + Less power consumption - Gentle-process-minimal material property change |
| Recycling Materials | |||
| Both Hard And Soft Material Hopper Feeding Recycling Line | |||
- Packaging film, PP Woven/Raffia- Pipe (PE/PP/PPR) - Powder and lumps (PE/PP) - E (electronic) waste - HDPE, LDPE, LLDPE, PP, BOPP, PS, ABS, PU, PC | |||
 | |||

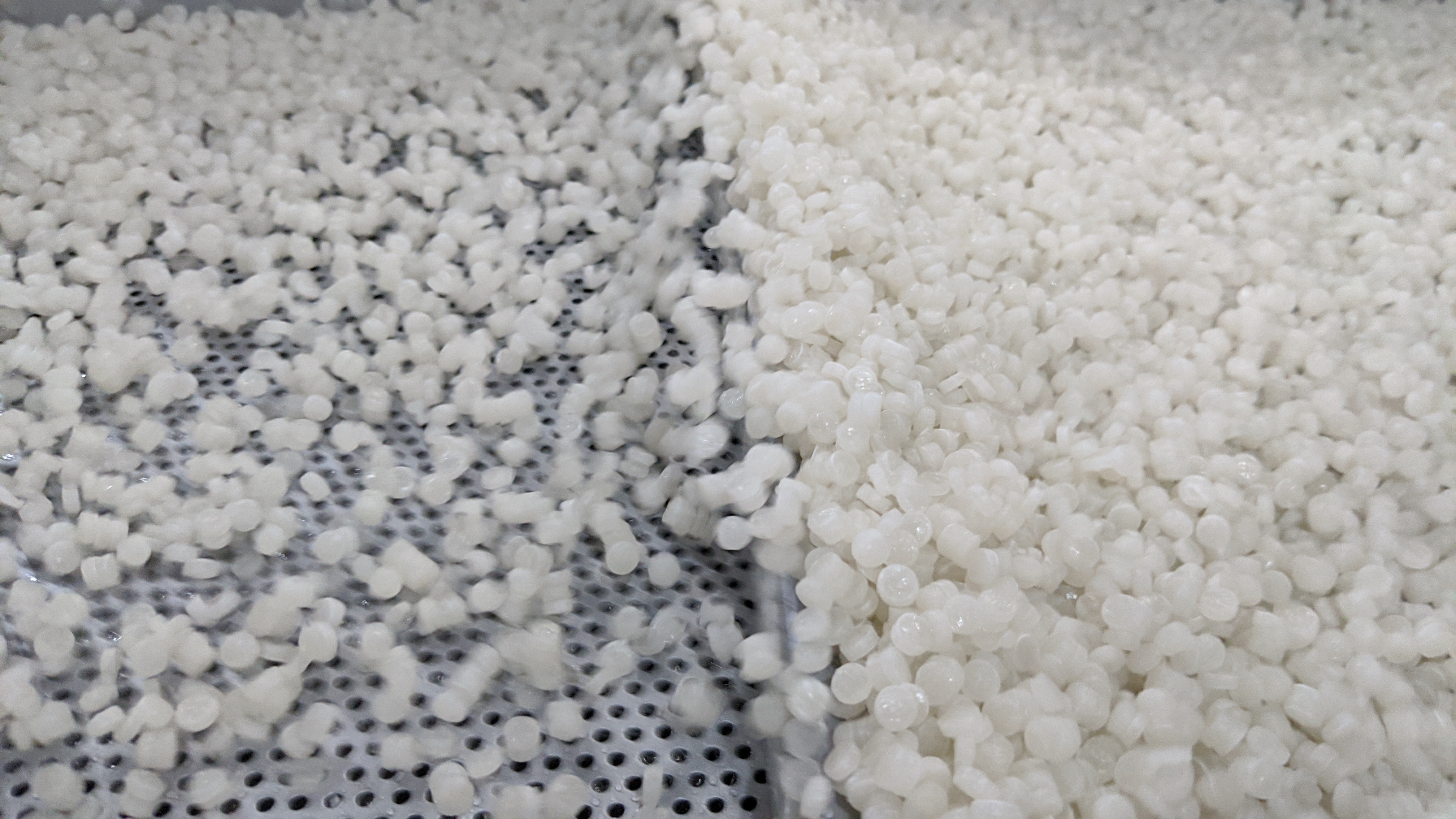

| Hard Plastic Regrind | Washed Material | Granules | Fluff flakes |
| Model Comparison | |||||
| Both Hard And Soft Material Hopper Feeding Recycling Line | |||||
| Model name: Repro-Direct Small to big production output range available depending on customers' requirement. | |||||
 | |||||
Model | *Output range (kg/hr) | Power consumption | Dimension | ||
A (Length) | B (Height) | C (Width) | |||
Repro-Direct 65 | 80-100 | 35 kw | 3800 | 2600 | 9300 |
Repro-Direct 85 | 100-180 | 62 kw | 6300 | 4100 | 10600 |
Repro-Direct 100 | 200-300 | 79 kw | 6300 | 4100 | 12600 |
Repro-Direct 120 | 300-450 | 116 kw | 6300 | 4100 | 14100 |
Repro-Direct 150 | 450-700 | 190 kw | 6300 | 4100 | 15500 |
Repro-Direct 165 | 700-900 | 219 kw | 6500 | 4100 | 16500 |
Repro-Direct 180 | 900-1100 | 290 kw | 6700 | 4100 | 18500 |
* The Both Hard And Soft Material Hopper Feeding Recycling Line layout (picture) is for reference only. The actual layout changes depending on the optional devices (metal detector, centrifugal dryer, nip roll feeder, venting option, filter option and machine cover option) that the customer chooses. * Output based post industrial PE regrind, without degassing. | |||||
| Product info | |
| Both Hard And Soft Material Hopper Feeding Recycling Line | |
 | |
 | The Repro-Direct Both Hard And Soft Material Hopper Feeding Recycling Line is a universal recycling pelletizing machine suitable for pre-crushed, heavy rigid regrind scraps such as bottles, pipes, containers and lumps in the form of granules. Applicable materials are mainly HDPE, LDPE, PP, PA, PC, PU, PBU, ABS and others. |
Both Hard And Soft Material Hopper Feeding Recycling Line can also process light-weighted soft packaging material such as pre-crushed film flakes, PP raffia, PE/PP woven, PE foam and many others with the addition of a force feeder on the feeding hopper. |  |
 | The feeding speed is controlled and adjusted automatically for different types of material shape and weight to ensure stable feeding and output production. When processing rigid regrind (granule), the force-feeding mechanism can be switched off. |
In the Repro-Direct Both Hard And Soft Material Hopper Feeding Recycling Line, material is fed into the hopper directly without the need for pre-heating before extrusion. When processing rigid regrind or compressed washed flakes (processed by a squeezer dryer), this system ensures a faster and easier machine starting and stopping process comparing to other systems (for example, a machine with a integrated cutter compactor which requires pre-heating of the cutter compactor before machine start). |  |
 | |
| Video |
| Both Hard And Soft Material Hopper Feeding Recycling Line |
| Customers' Photos | |
| Both Hard And Soft Material Hopper Feeding Recycling Line | |
 |  |
| Sweden The Sweden reputed recycler, which is the professional recycler and collects plastics from waste electrical and electronic equipment (WEEE) and other products from the automotive sector such as bumpers, battery packs, engine piping, etc. These Post-Consumer waste are contained with iron particles, wood pieces and paper labels…etc. Thus, the turnkey solution from the material sorting, cleaning, drying and processing into the high end quality recycled pellets are the essential factors toward business success. Thanks to the simplest yet powerful design of POLYSTAR’s Both Hard And Soft Material Hopper Feeding Recycling Line, plus integrate with FIMIC’s advanced auto cleaning filtration system. It ensures the excellent filtration efficiency and continuously high output performance. The collected post-consumer ABS and PS regrind have the higher bulk density of 200-600 kg/m3 and is with more fluidity. Both properties contribute to the washing and sorting processes working better and the material thus being available in a more clean-sorted form. Meanwhile, POLYSTAR customize the tailor-made screw profile design which is optimized the melting flow paths and activities for both materials, and the specific pelletizing die head design is also beneficial for stabilizing the quality and consistency of the pelletizing process. | |
Indonesia A Polystar 100kg per hour recycling line has been commissioned in Indonesia, for pelletizing PE and PP rigid waste. The Malang-based company is an outdoor furniture manufacturer with over 500 staff and 30 extruders. The waste is generated in-house from the manufacturing of outdoor furniture. With the addition of this new pelletizing/recycling line, the company can now turn these waste back into good quality, reusable pellets (granules), and then put it directly back into the extrusion process, for making the products (furniture) again. |  |
Dominican Republic Polystar installed two sets of TR-150V Both Hard And Soft Material Hopper Feeding Recycling Line, material in Dominican Republic. This Both Hard And Soft Material Hopper Feeding Recycling Line, material are designed to work in line with a Italian washing line for contaminated HDPE and LDPE polyethylene film waste. A distinctive feature of this Both Hard And Soft Material Hopper Feeding Recycling Line, material is its ability to process fluffy film flakes that are very light in weight. |  |
| POLYSTAR World-class Manufacturing Quality | ||
| Both Hard And Soft Material Hopper Feeding Recycling Line | ||
 |  |  |
High quality recycled pellets | Manufacturing with Precision | Service and Communication |
Up to 100% reusability back into your production line. Post-industrial waste generated from production of film, raffia and injection regrind can be recycled efficiently by Both Hard And Soft Material Hopper Feeding Recycling Line and put right back into your production lines. Meaning less amount of new (raw) material needs to be used in your production. | - CE certified Both Hard And Soft Material Hopper Feeding Recycling Line with total quality control - Adopts the latest design and manufacturing of screw and barrel to achieve maximum efficiency - Strong research and design team | - Interested customers are able to see live machine demonstration during visit - Overseas Both Hard And Soft Material Hopper Feeding Recycling Line and training are available - Machine warranty with in-time spare parts delivery - Fast online trouble shooting |
| Worldwide Presence |
| Both Hard And Soft Material Hopper Feeding Recycling Line |
 |
| 32 years of experience Through years of manufacturing and designing experiences and continuous customer feedback, POLYSTAR has become one of the global leaders in the field through 3 generation of technological evolution. A global leader with 4,180 machines installed More than 4,180 machines have been installed since 1988. Proven success in Asia, Africa, Europe, Middle East & America. Satisfied customers in 105 countries POLYSTAR has been working closely with plastic producers around the world and has established itself as a premium brand that offers reliable and high performing machines in the market. |
| POLYSTAR Exhibition | |
| Visit POLYSTAR at worldwide exhibition for Both Hard And Soft Material Hopper Feeding Recycling Line | |
 |  |
 |  |
| Shipping photos | |
| Both Hard And Soft Material Hopper Feeding Recycling Line | |
 |  |
 | |
| Contact POLYSTAR | |
 | Both Hard And Soft Material Hopper Feeding Recycling Line Official Website: www.polystarco.com Youtube Channel: https://www.youtube.com/user/Polystarco E-mail : sales@polystarco.com Recycle in an easy way - Work with POLYSTAR! |
 | |
 | |
Stable Operation. Maximum performance. Minimum consumption | |
POLYSTAR machines are powered by top quality electrical components Energy saving and high performance motors | |
